Premium
Premium — Electrophoresis-coated (black) brackets for superior rust resistance and a premium aesthetic. Dual-bearing design for lower noise and smoother rolling. PU (Polyurethane) wheel with ball bearing and dual axle. Available in 3 mount configurations with 6 total SKUs.
Wheel PU (Polyurethane)
Bearing Ball Bearing
Axle Dual Axle
Mount Top Plate
Variants 3
Total Variants 6
Need a quote or have questions?

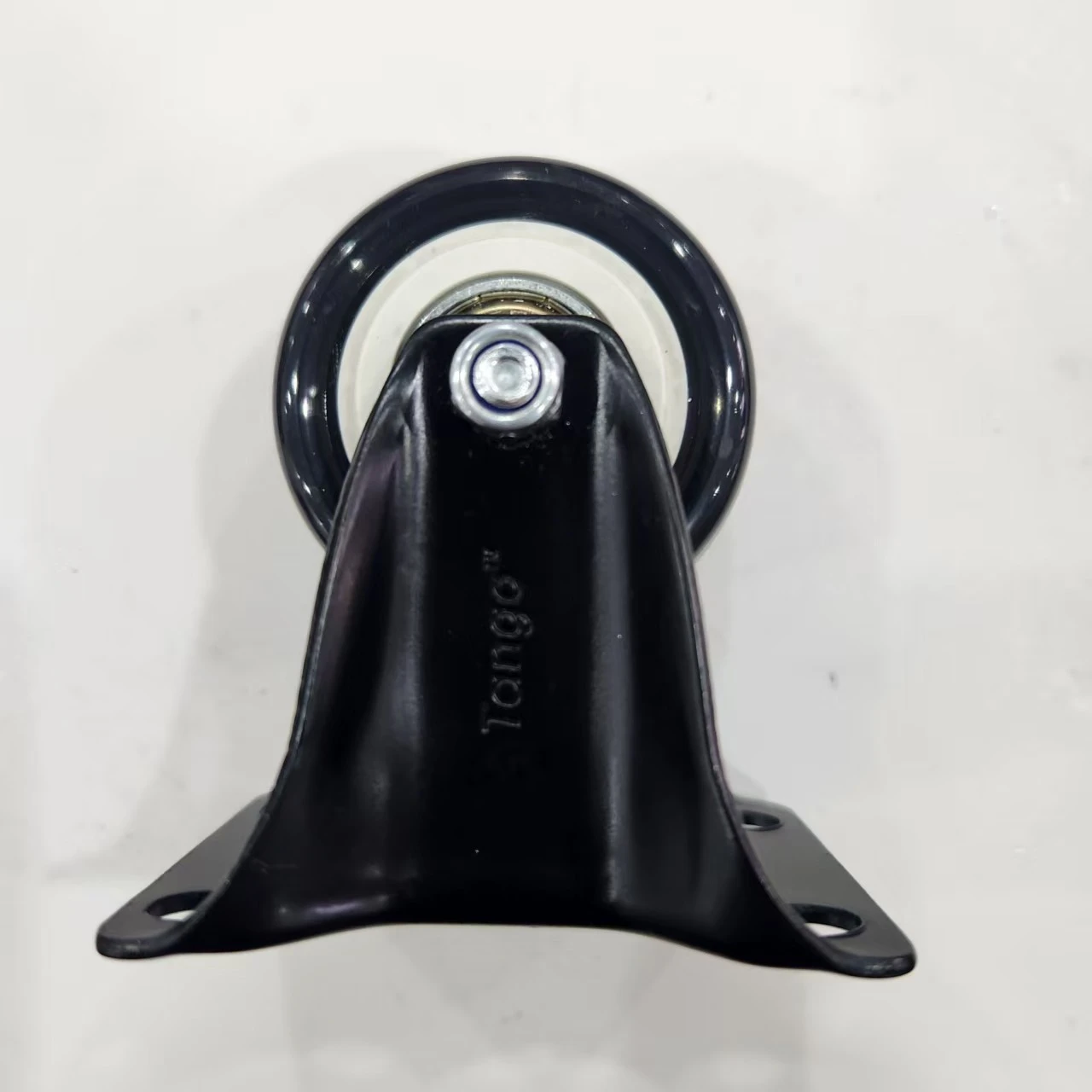

Fixed
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 18-040-F-SZ-PU | 40 | 20 | 40 | — | 1.5|1.5 | 62 | 60*43 | 45.5*27.5 | Φ6.5*9.5 | |
| 18-050-F-SZ-PU | 50 | 25 | 50 | — | 2.0|2.5 | 75 | 70*51 | 53*35 | Φ8.5*11.5 |
Swivel
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 18-040-S-SZ-PU | 40 | 20 | 40 | 25 | 1.5|1.5 | 62 | 60*43 | 45.5*27.5 | Φ6.5*9.5 | |
| 18-050-S-SZ-PU | 50 | 25 | 50 | 28 | 2.0|2.5 | 75 | 70*51 | 53*35 | Φ8.5*11.5 |

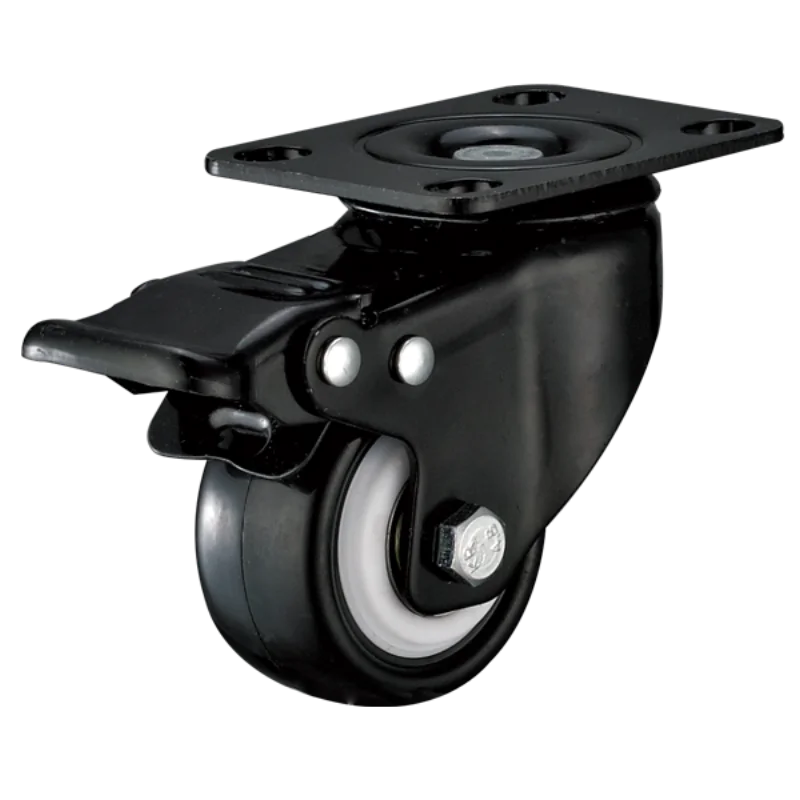

Brake
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 18-040-B-SZ-PU | 40 | 20 | 40 | 25 | 1.5|1.5 | 62 | 60*43 | 45.5*27.5 | Φ6.5*9.5 | |
| 18-050-B-SZ-PU | 50 | 25 | 50 | 28 | 2.0|2.5 | 75 | 70*51 | 53*35 | Φ8.5*11.5 |
