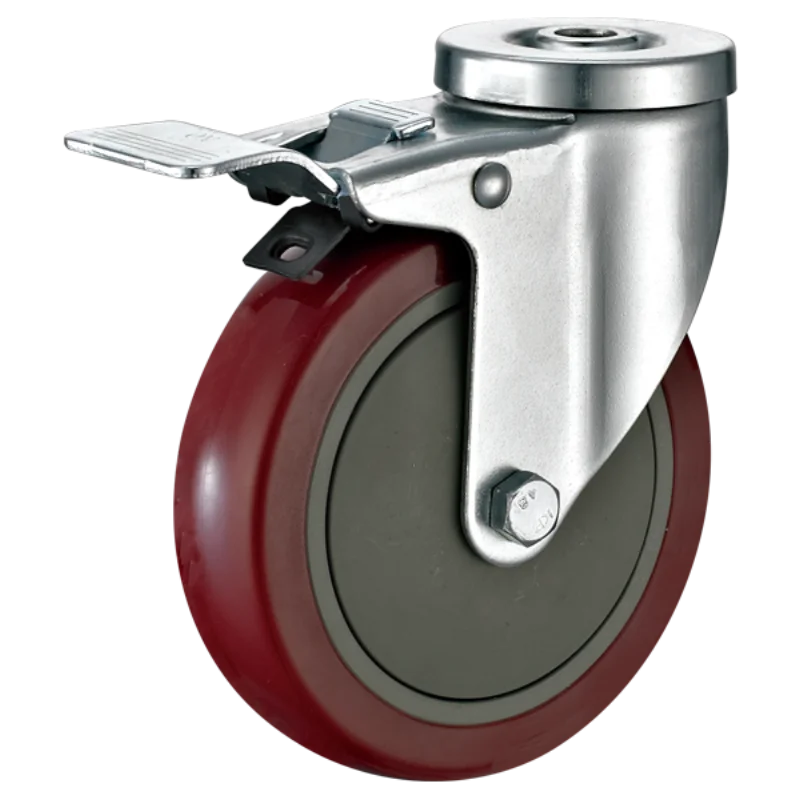

Medium-Duty Red PE
Medium-Duty Red PE — Red PE (Polyethylene) wheel with ball bearing. Available in 3 mount configurations with 9 total SKUs.
Wheel Red PE (Polyethylene)
Bearing Ball Bearing
Axle Single Axle
Mount Top Plate
Variants 3
Total Variants 9
Need a quote or have questions?
Fixed
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 05C-075-F-DZ-PE | 75 | 32 | 70 | — | 2.3 | 105 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-100-F-DZ-PE | 100 | 32 | 100 | — | 2.3 | 130 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-125-F-DZ-PE | 125 | 32 | 120 | — | 2.3 | 157 | 95*65 | 75*45 | Φ8.5*12 |
Swivel
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 05C-075-S-DZ-PE | 75 | 32 | 70 | 33 | 2.3|3.0 | 105 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-100-S-DZ-PE | 100 | 32 | 100 | 33 | 2.3|3.0 | 130 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-125-S-DZ-PE | 125 | 32 | 120 | 33 | 2.3|3.0 | 157 | 95*65 | 75*45 | Φ8.5*12 |

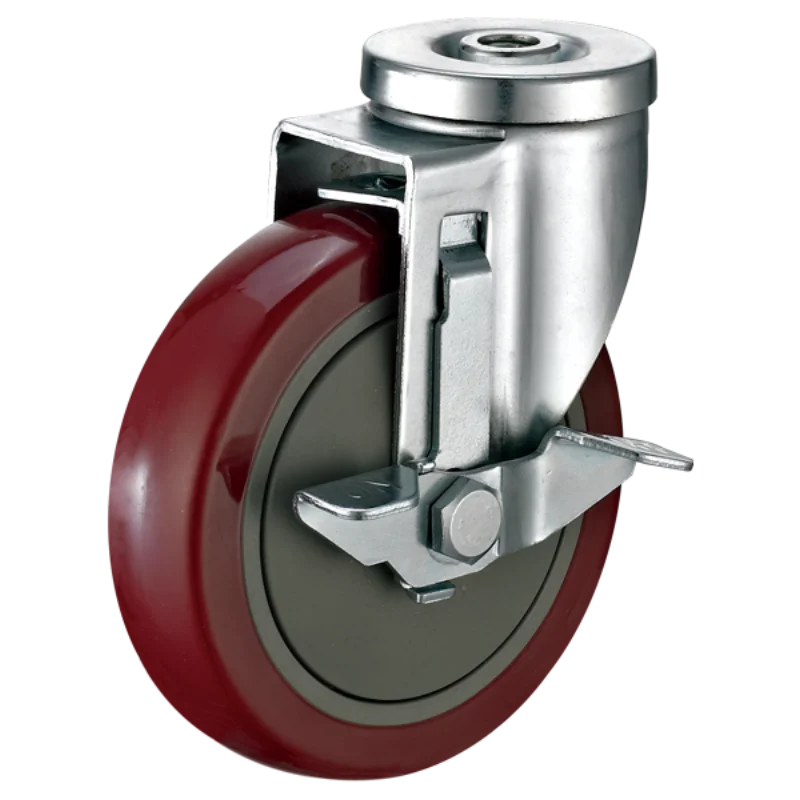

Brake
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 05C-075-B-DZ-PE | 75 | 32 | 70 | 33 | 2.3|3.0 | 105 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-100-B-DZ-PE | 100 | 32 | 100 | 33 | 2.3|3.0 | 130 | 95*65 | 75*45 | Φ8.5*12 | |
| 05C-125-B-DZ-PE | 125 | 32 | 120 | 33 | 2.3|3.0 | 157 | 95*65 | 75*45 | Φ8.5*12 |
