Medical

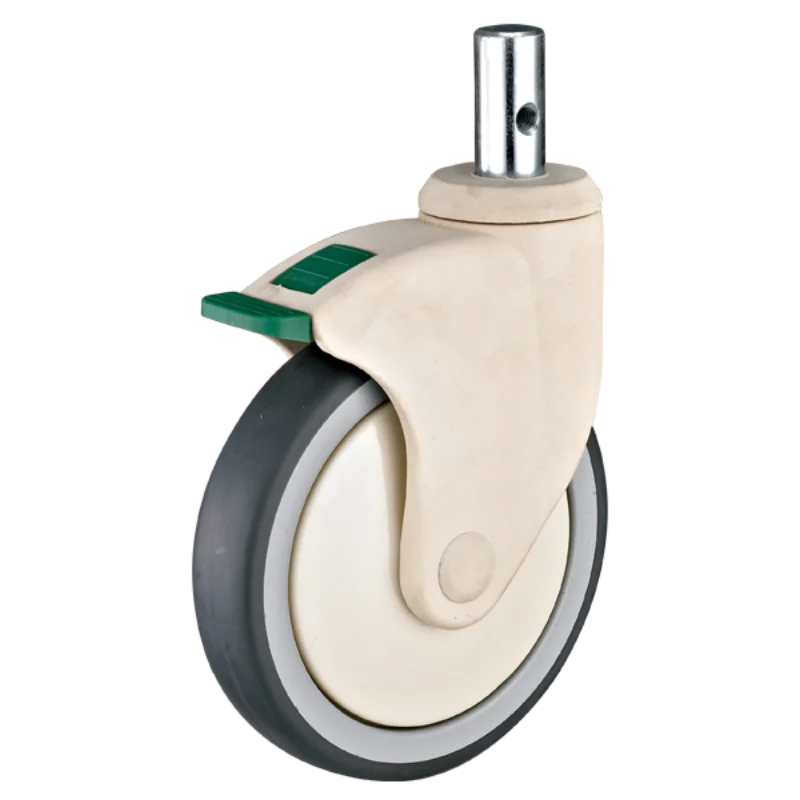

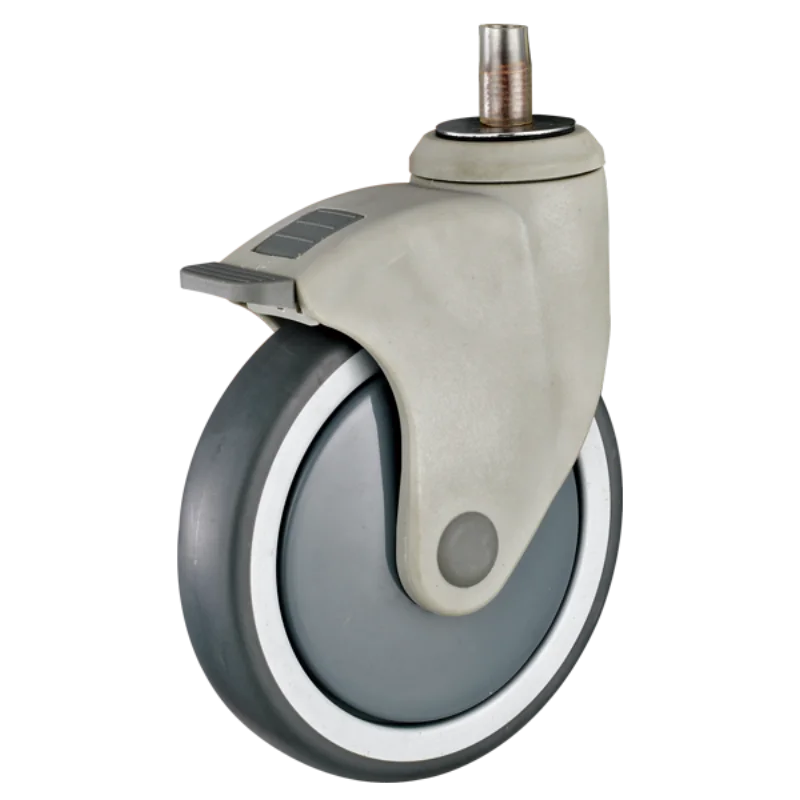

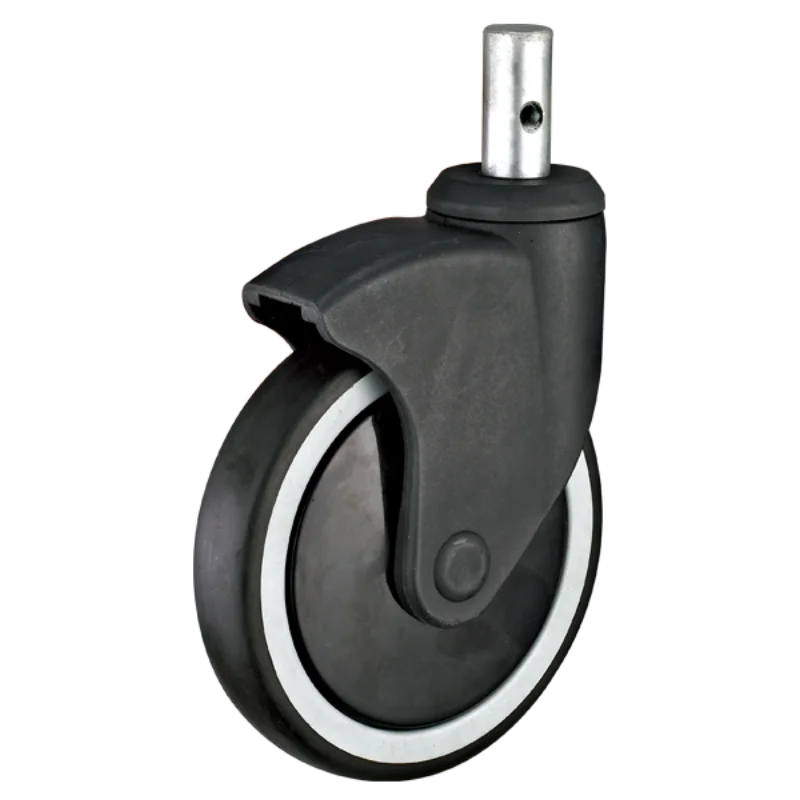

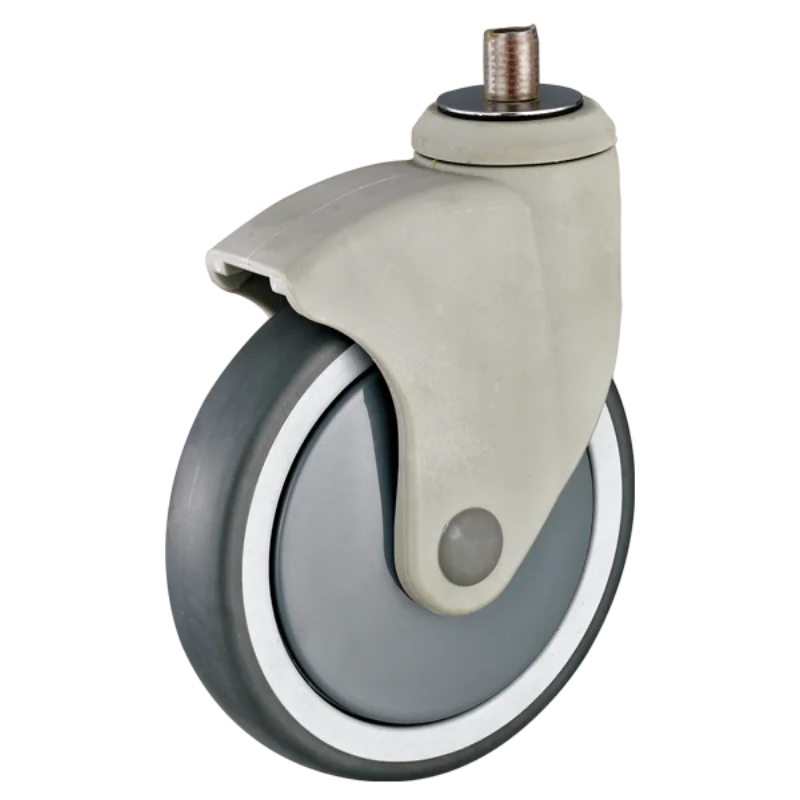

Medical — Medical-grade stem-mount caster with TPR (Thermoplastic Rubber) wheel and ball bearing. Available in 6 mount configurations with 9 total SKUs.
Wheel TPR (Thermoplastic Rubber)
Bearing Ball Bearing
Axle Single Axle
Mount Stem
Variants 6
Total Variants 9
Need a quote or have questions?
Threaded Stem Swivel
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-075-TS-DZ-TPR | 75 | 32 | 60 | 32 | 2.5 | 105 | M12*30 | |
| 13-100-TS-DZ-TPR | 100 | 32 | 100 | 38 | 2.5 | 136 | M12*30 |
Threaded Stem Brake
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-075-TB-DZ-TPR | 75 | 32 | 60 | 32 | 2.5 | 105 | M12*30 | |
| 13-100-TB-DZ-TPR | 100 | 32 | 100 | 38 | 2.5 | 136 | M12*30 |
Round Stem Swivel
1 variant| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-125-HS-DZ-TPR | 125 | 32 | 130 | 38 | 2.5 | — | — |
Round Stem Brake
1 variant| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-125-HB-DZ-TPR | 125 | 32 | 130 | 38 | 2.5 | — | — |
Round Stem Swivel (No Brake)
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-150-HS/F-DZ-TPR | 150 | 32 | 130 | 38 | 2.5 | — | — | |
| 13-150-HB/F-DZ-TPR | 150 | 32 | 130 | 38 | 2.5 | — | — |
Expansion Sleeve Swivel
1 variant| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Stem Size |
|---|---|---|---|---|---|---|---|---|
| 13-125-PC-DZ-TPR | 125 | 32 | 130 | 38 | 2.5 | 158 | — |
