Light-Duty Top Plate
Light-Duty Top Plate — Rubber wheel with iron tube bearing. Available in 3 mount configurations with 9 total SKUs.
Wheel Rubber
Bearing Iron Tube
Mount Top Plate
Variants 3
Total Variants 9
Need a quote or have questions?

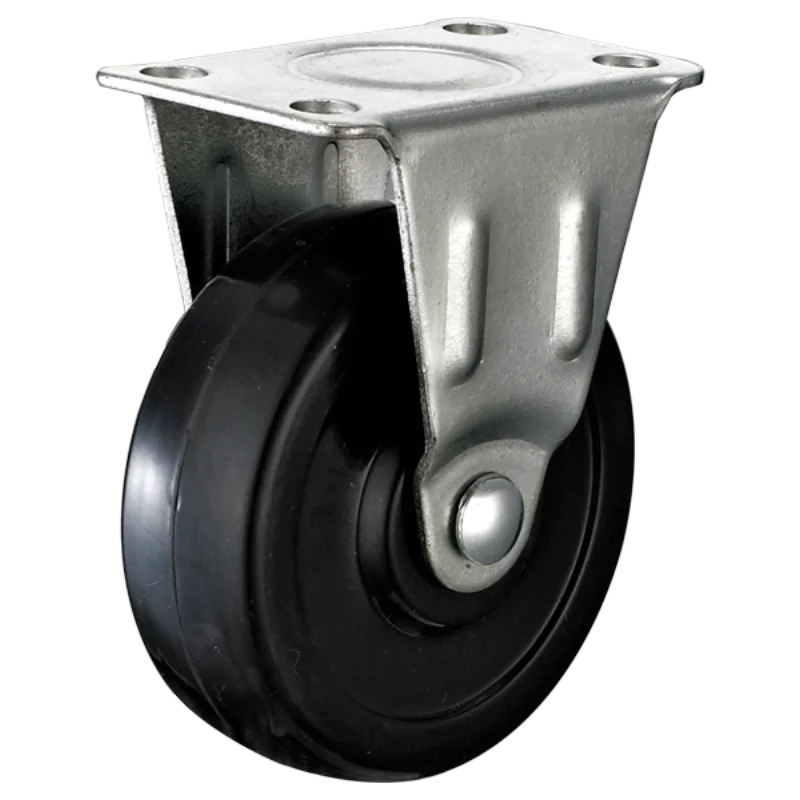

Fixed
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 09-050-F-ZT-Rubber | 50 | 21 | 30 | — | 2 | 65 | 60*50 | 45*34 | Φ6 | |
| 09-065-F-ZT-Rubber | 65 | 24 | 40 | — | 2 | 84 | 70*58 | 53*42 | Φ8 | |
| 09-075-F-ZT-Rubber | 75 | 26 | 50 | — | 2 | 95 | 70*58 | 53*42 | Φ8 |
Swivel
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 09-050-S-ZT-Rubber | 50 | 21 | 30 | 21 | 2.0|2.0 | 65 | 60*50 | 45*34 | Φ6 | |
| 09-065-S-ZT-Rubber | 65 | 24 | 40 | 25 | 2.0|2.0 | 84 | 70*58 | 53*42 | Φ8 | |
| 09-075-S-ZT-Rubber | 75 | 26 | 50 | 27.5 | 2.0|2.0 | 95 | 70*58 | 53*42 | Φ8 |

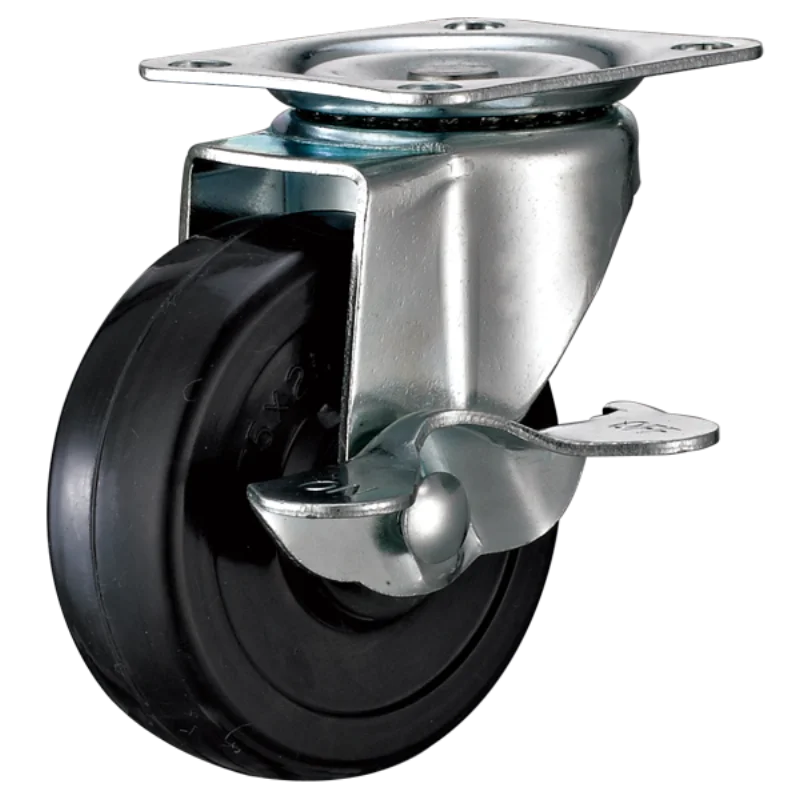

Side Lock
3 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 09-050-C-ZT-Rubber | 50 | 21 | 30 | 21 | 2.0|2.0 | 65 | 60*50 | 45*34 | Φ6 | |
| 09-065-C-ZT-Rubber | 65 | 24 | 40 | 25 | 2.0|2.0 | 84 | 70*58 | 53*42 | Φ8 | |
| 09-075-C-ZT-Rubber | 75 | 26 | 50 | 27.5 | 2.0|2.0 | 95 | 70*58 | 53*42 | Φ8 |
