Heavy-Duty PP
Heavy-Duty PP — PP (Polypropylene) wheel with needle bearing. Available in 2 mount configurations with 4 total SKUs.
Wheel PP (Polypropylene)
Bearing Needle Bearing
Mount Top Plate
Variants 2
Total Variants 4
Need a quote or have questions?

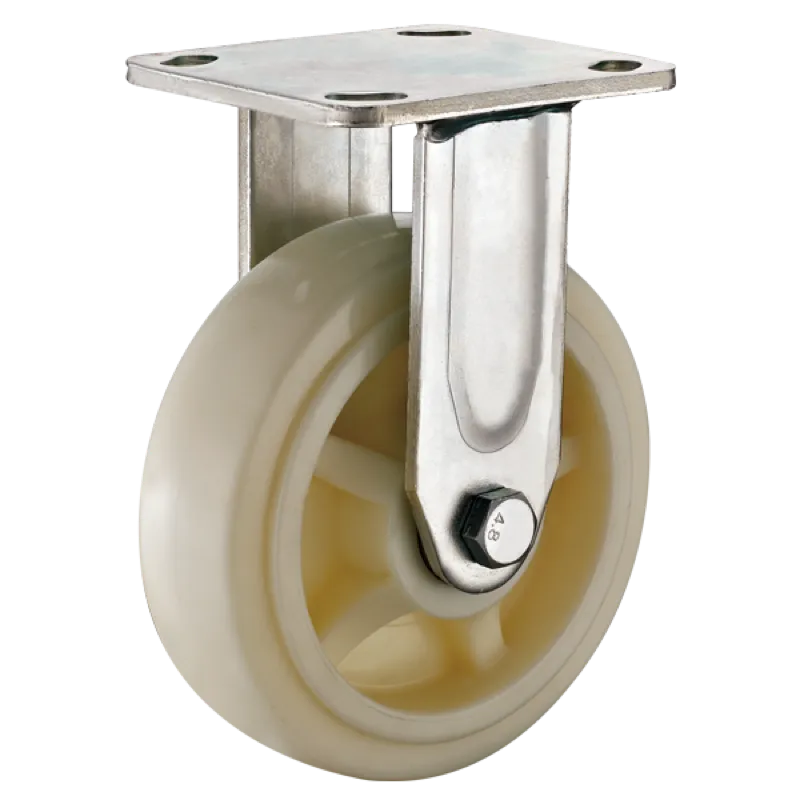

Fixed
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 06B-100-F-GZ-PP | 100 | 50 | 250 | — | 5.5 | 142 | 115*100 | 84*7.15 | Φ11.5*20.5 | |
| 06B-125-F-GZ-PP | 125 | 50 | 300 | — | 5.5 | 164 | 115*100 | 84*7.15 | Φ11.5*20.5 |
Swivel
2 variants| Quote | Product Code | Wheel Dia. (mm) | Wheel Width (mm) | Load Cap. (kg) | Swivel Offset (mm) | Bracket (mm) | Height (mm) | Top Plate (mm) | Bolt Spacing (mm) | Bolt Hole (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 06B-100-S-GZ-PP | 100 | 50 | 250 | 35 | 5.5|5.5 | 142 | 115*100 | 84*7.15 | Φ11.5*20.5 | |
| 06B-125-S-GZ-PP | 125 | 50 | 300 | 39 | 5.5|5.5 | 164 | 115*100 | 84*7.15 | Φ11.5*20.5 |
